Product Highlights

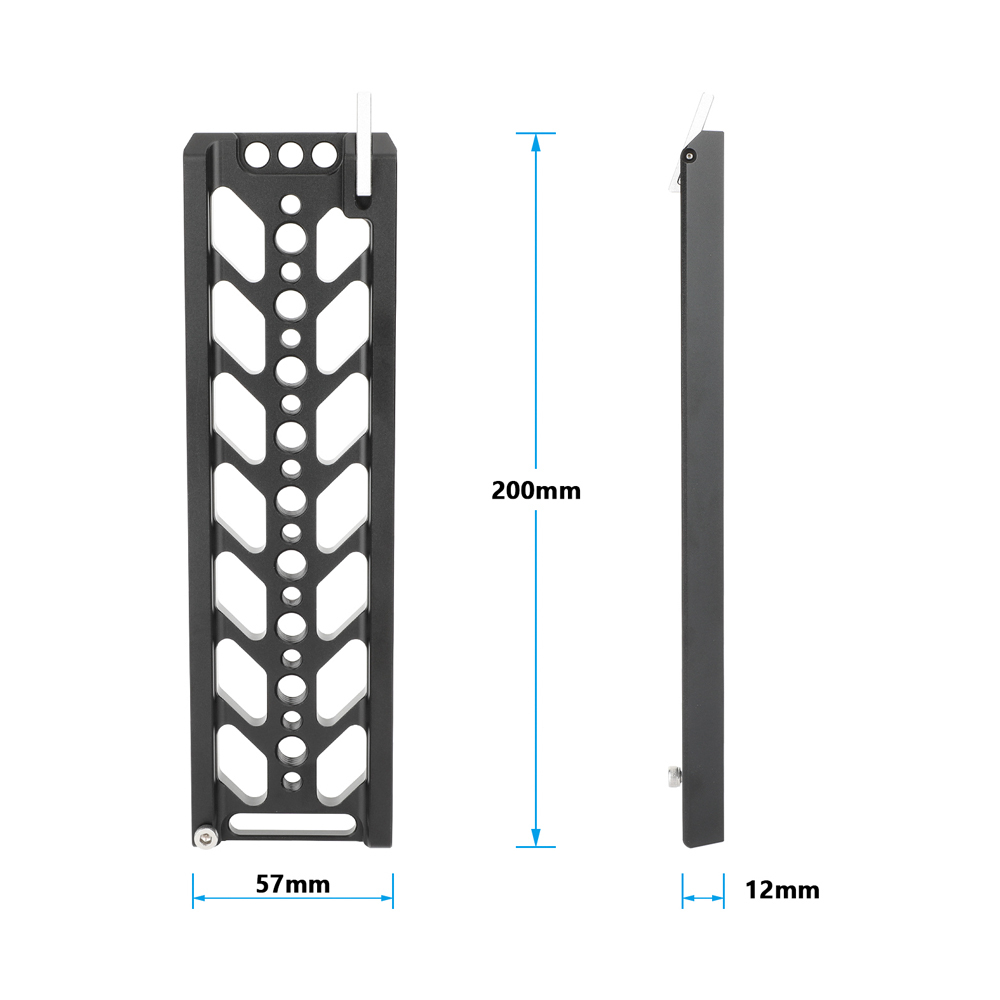

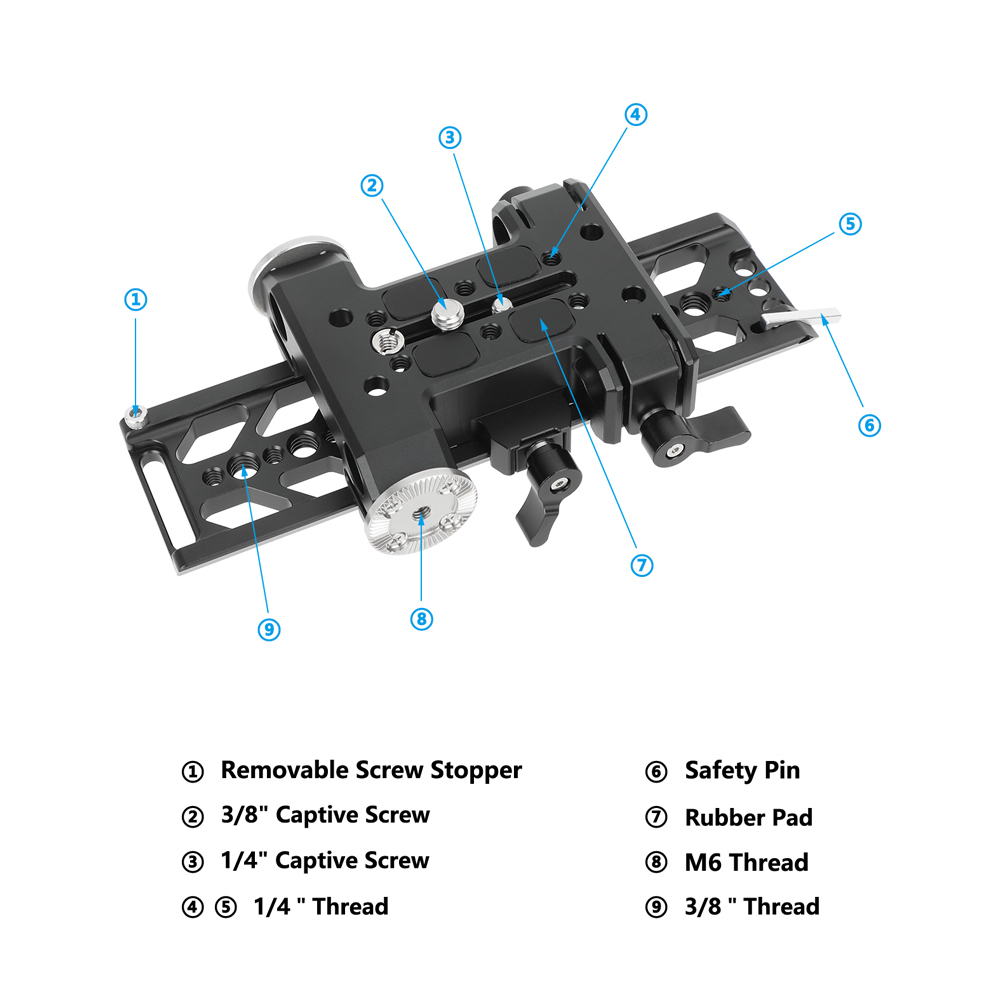

• 8"/20cm Tilta-Standard Dovetail Plate

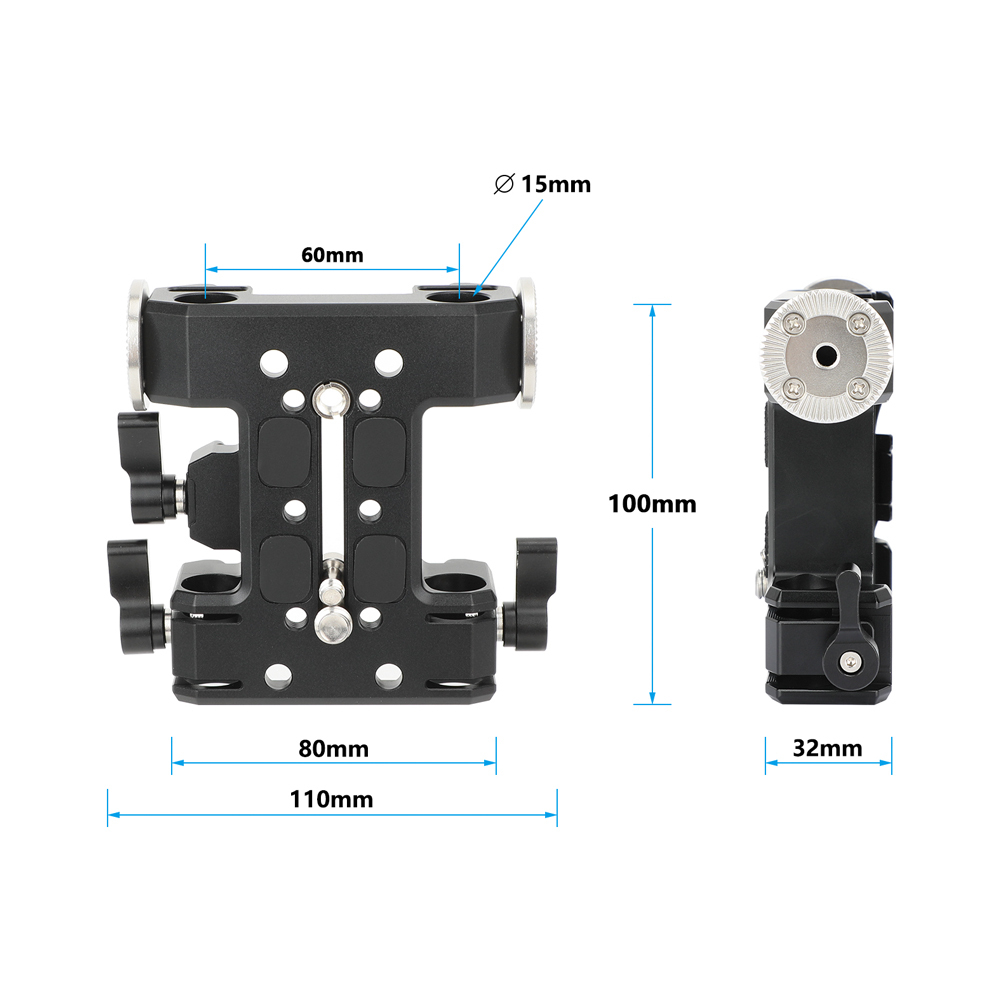

• Sliding Bridge Plate
• 15mm LWS Rod Support, ARRI Rosettes
• 1/4"-20 and 3/8"-16 Camera Mounts
• 1/4"-20 and 3/8"-16 Accessory Threads
• Safety Pin, Stopper Screw
• Aluminum Alloy Construction
Product Description

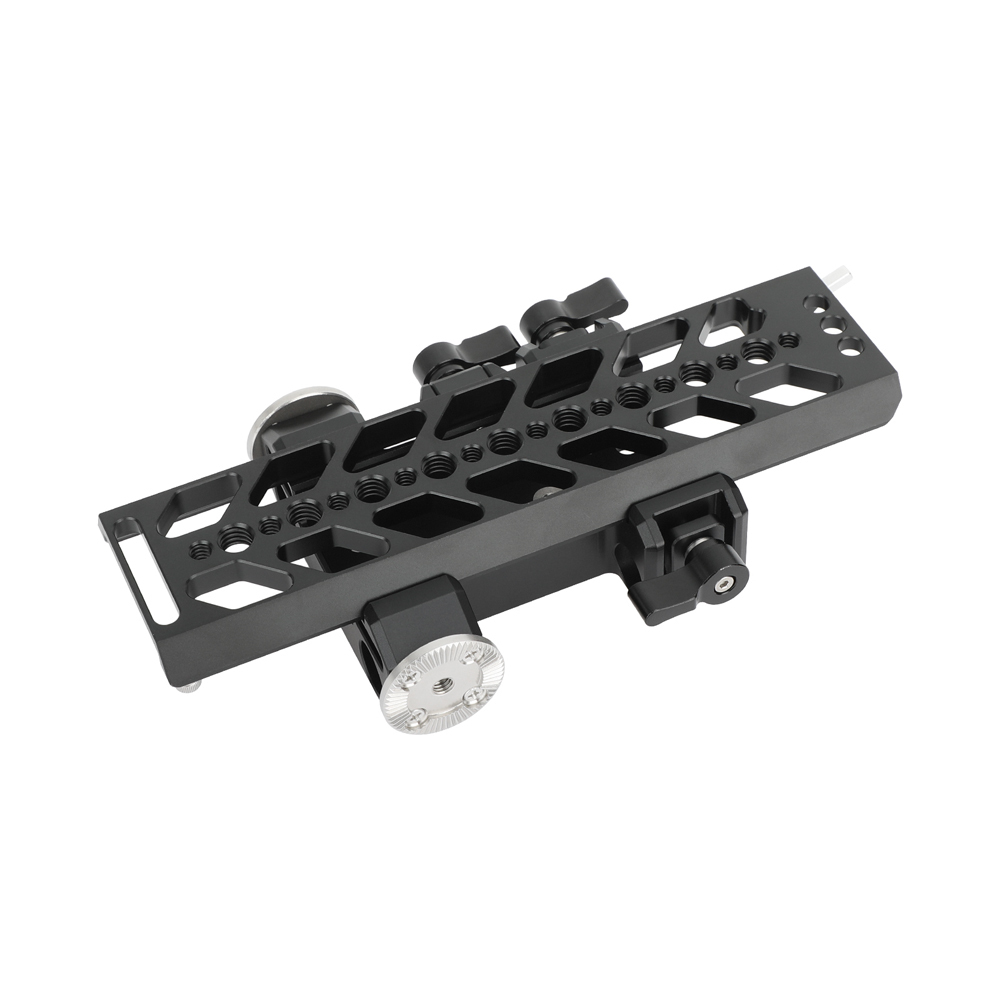

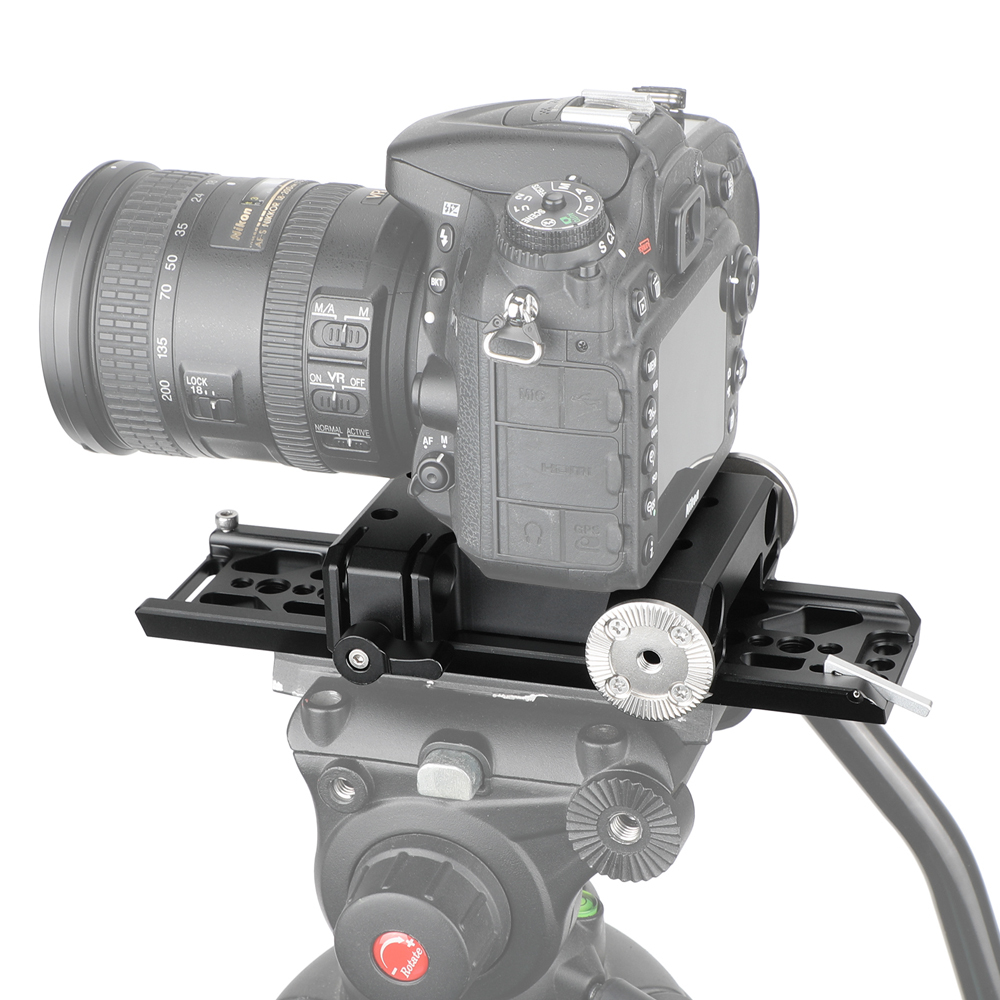

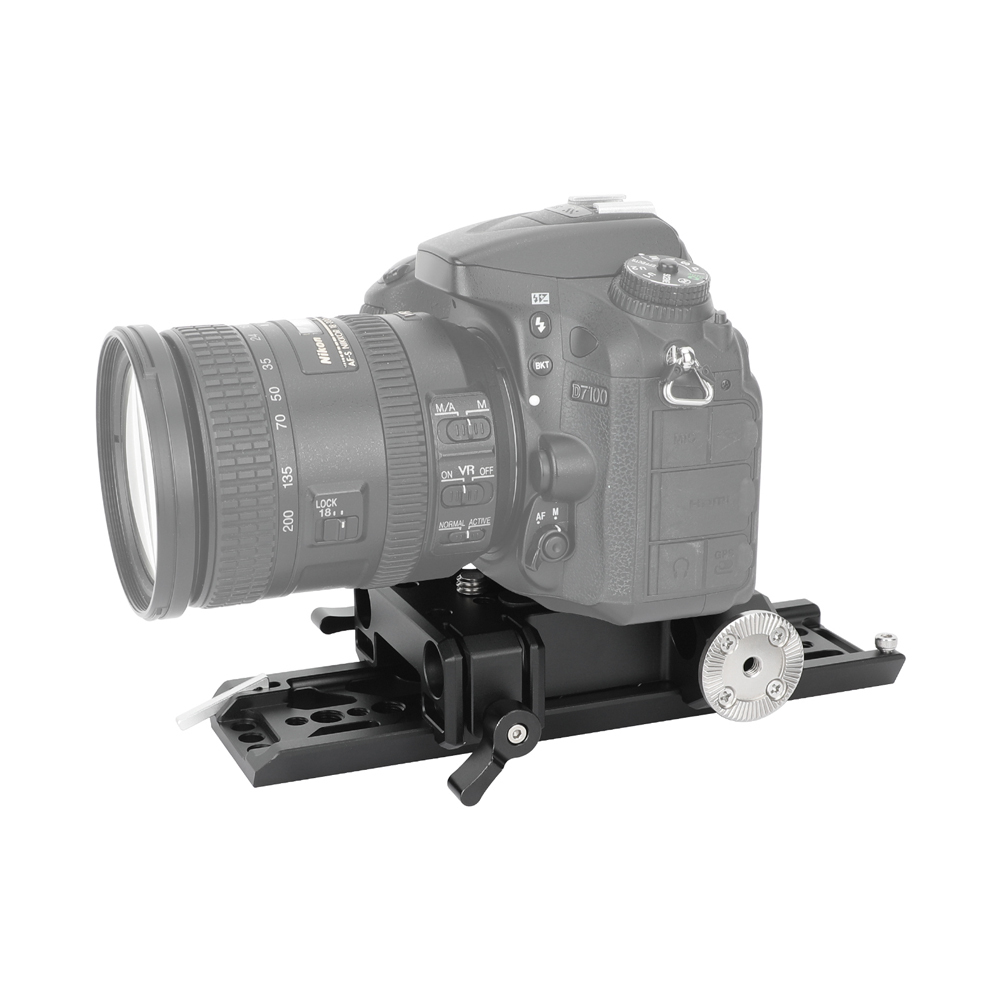

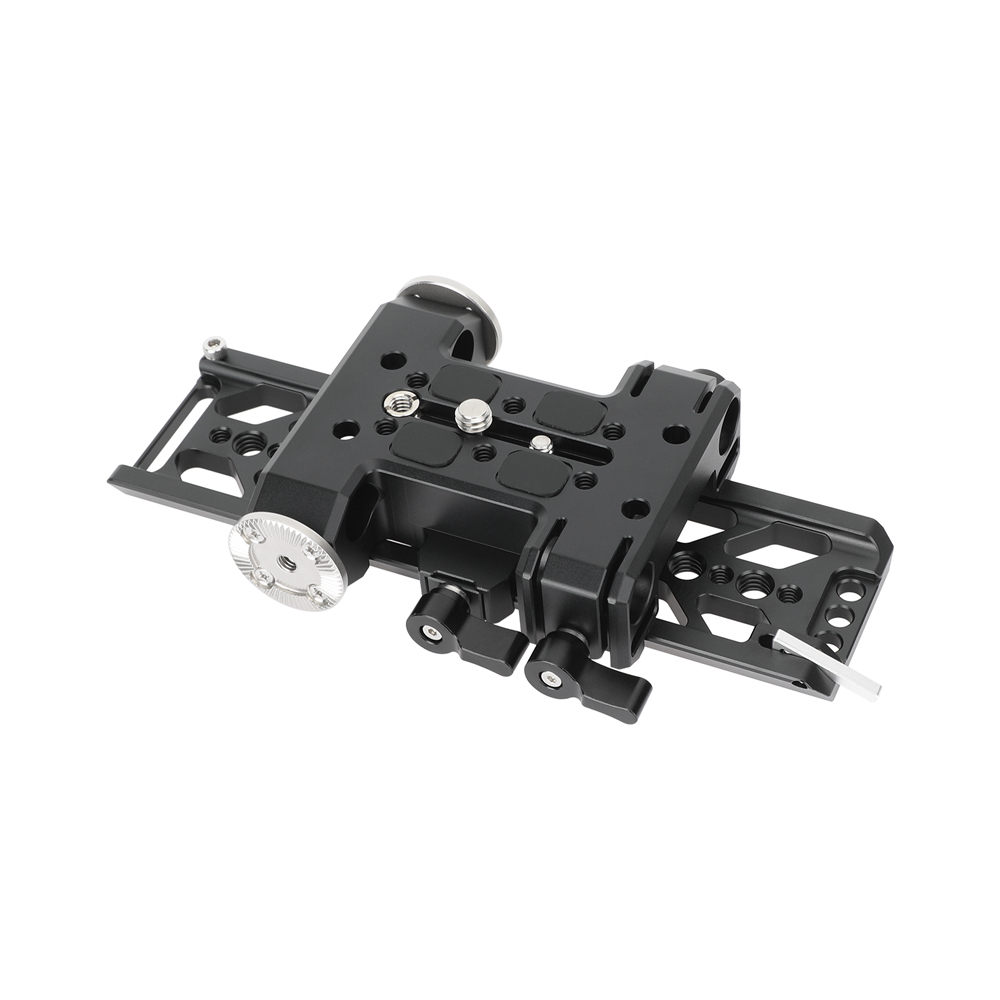

Integrate this 8" Dovetail Plate and 15mm LWS Baseplate into your rig configuration and provide additional adjustment length to properly balance your camera. The dovetail plate features a safety pin and stopper screw for security, and it incorporates 1/4"-20 and 3/8"-16 threaded holes to integrate accessories to the front or rear of your camera, as well as attach the dovetail to a tripod quick release plate or other support. The bridge plate offers two ARRI rosette mounts for attaching optional handgrips as well as dual 15mm rod clamps for rod-mounted configurations, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The baseplate is made with excess weight cut out to provide a minimalist, lightweight design. The sled slides into the dovetail and offers two camera screws, one 14"-20 and one 3/8"-16 for mounting your camera.
Note: This dovetail set is not ARRI-compatible.
Net Weight: 413 g

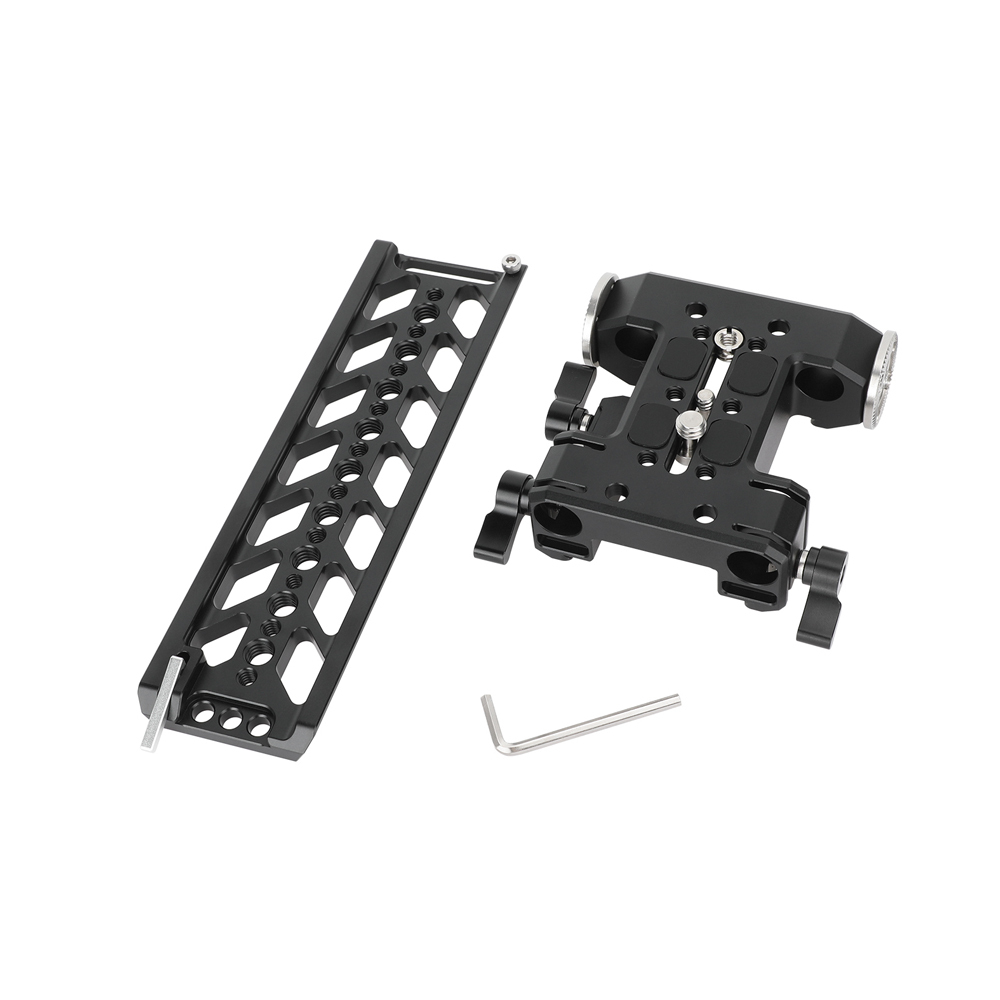

Package Included:
1 x 8"/20cm Tilta-Standard Bottom Dovetail
1 x Sliding Bridge Plate
1 x Allen Wrench
